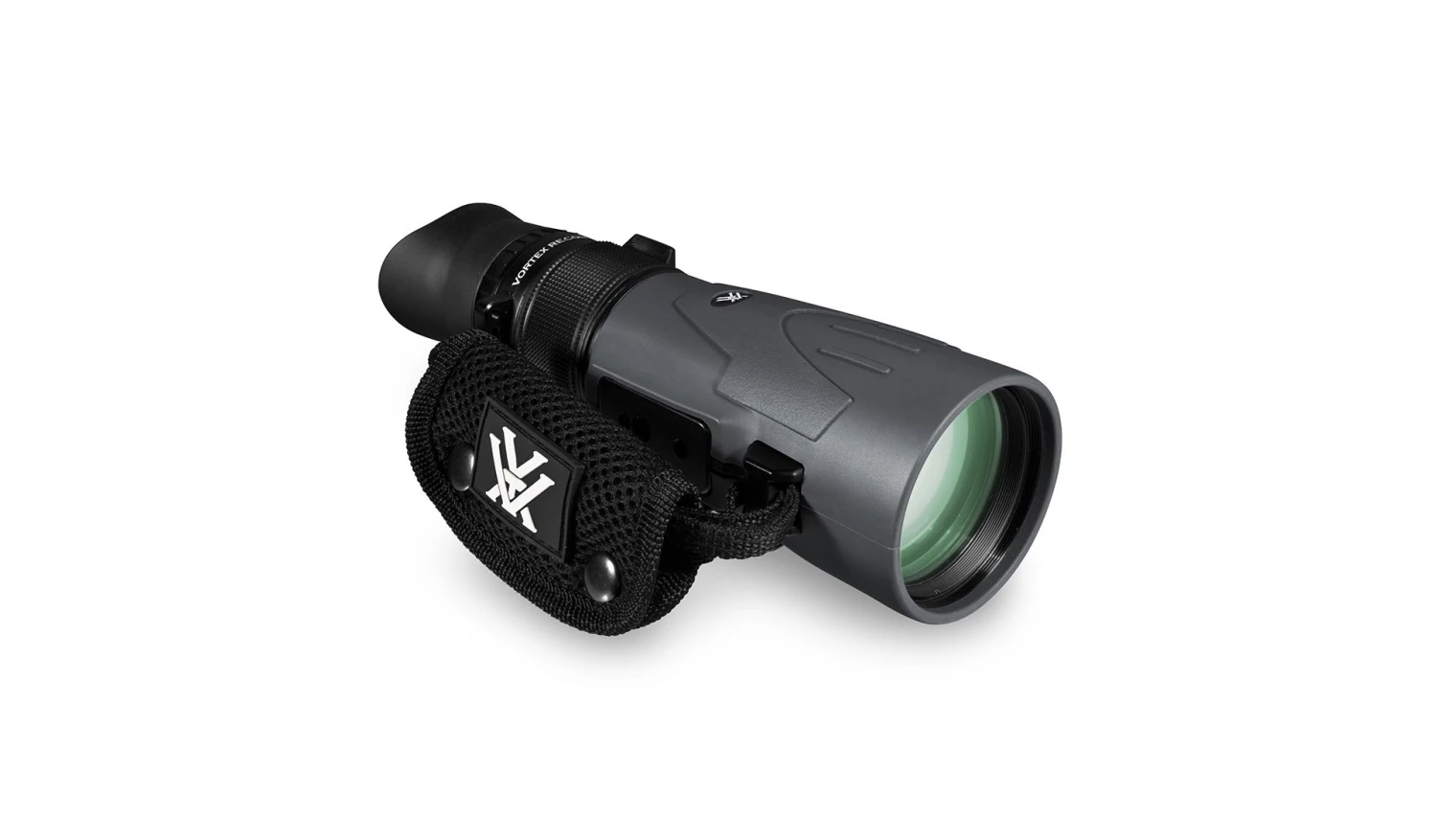

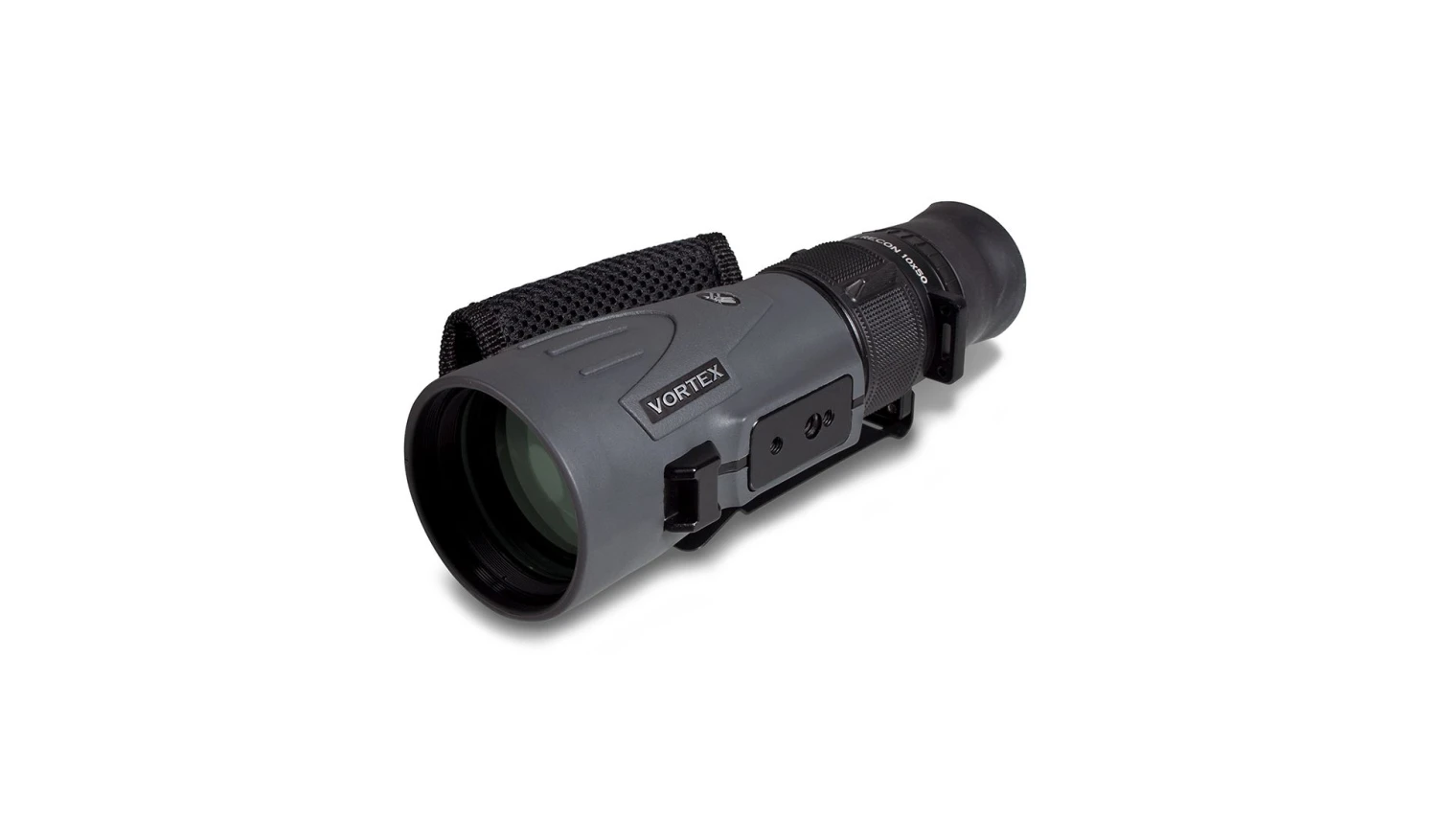

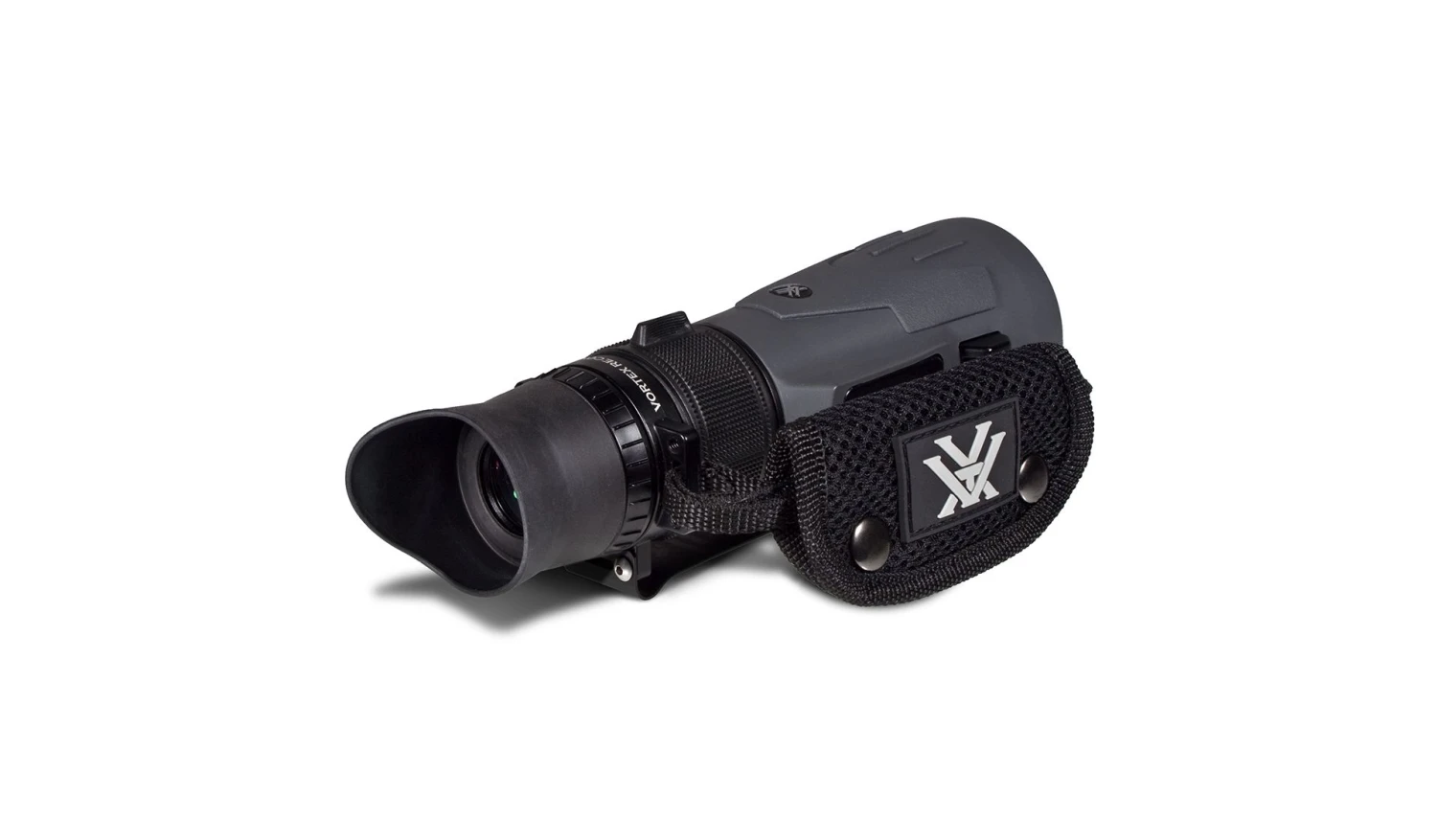

Vortex Recon 15×50 R/T Tactical Scope

The Recon R/T is a unique, advanced tactical piece of
equipment that is unlike any other in the field. The first truly compact,
full-featured spotting scope in the Vortex line developed especially for field
surveillance and range estimating. The versatile attachment clip secures the
Recon R/T to any belt or strap for rapid deployment.

US Patents D603,436S • 8,116,015 • 7,877,886

Included in the Box

• Rain/dust
  hood

• Uni-Daptor
  tripod adapter

• Utility
  clip

• Picatinny
  rail

• Flip
  up objective lens cap



Magnification 15x

Objective Lens Diameter 50 mm

Eye Relief 16 mm

Exit Pupil 3.3 mm

Linear Field of View 215 feet/1000 yards

Angular Field of View 4.1 degrees

Close Focus 12 feet

Length 7 inches

Width 2 inches

Weight 15.2 oz

Product Manual (PDF) Download

OPTICAL FEATURES

XD™ Lens Elements Extra-low dispersion (XD) glass increases
resolution and color fidelity, resulting in crisp, sharp images.

XR™ Fully Multi-Coated Proprietary coatings increase light
transmission with multiple anti-reflective coatings on all air-to-glass
surfaces.

Phase Correction Coating on roof prism models enhances
resolution and contrast.

CONSTRUCTION FEATURES

Roof Prism Valued for greater durability and a more compact
size.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a
wide range of temperatures.

ArmorTek ® Ultra-hard, scratch-resistant coating protects
exterior lenses from scratches, oil and dirt.

Rubber Armor Provides a secure, non-slip grip, and durable
external protection.

CONVENIENCE FEATURES

Main Focus Allows for sharp image acquisition at distances
from as close as 12 feet to infinity.

Fine Focus Allows for precise focus adjustment for fine
image detail.

Utility Clip The versatile, multi-position utility clip
allows for multiple attachment points and quick attachment to pocket edges,
equipment or vests.

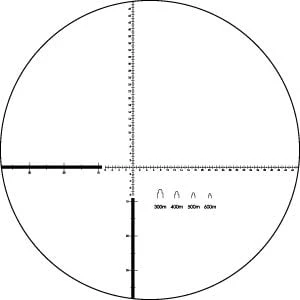

RETICLE



RANGING RETICLE

This ranging reticle uses MRAD-based subtensions and
includes silhouettes for quick ranging. The angular measurements allow you to
calculate ranges when comparing the reticle to objects of known dimension.

Subtension detail for Recon R/T Monocular with ranging reticle.
