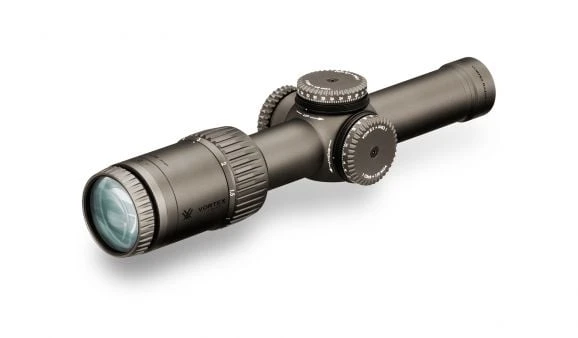

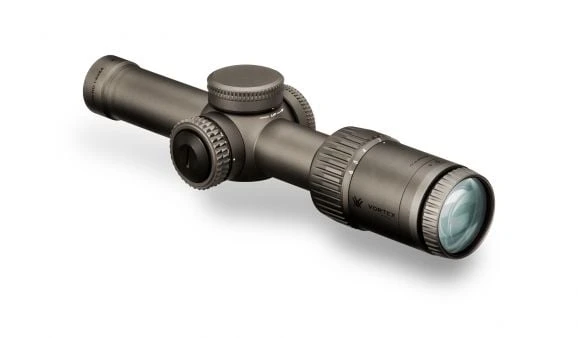

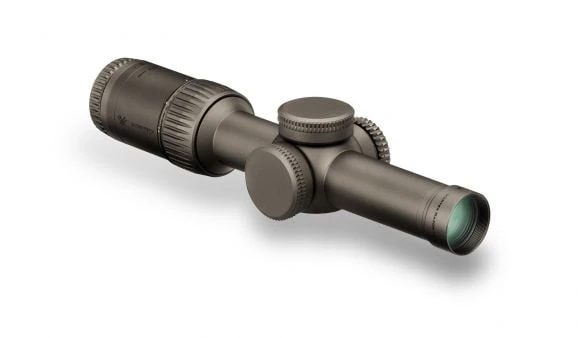

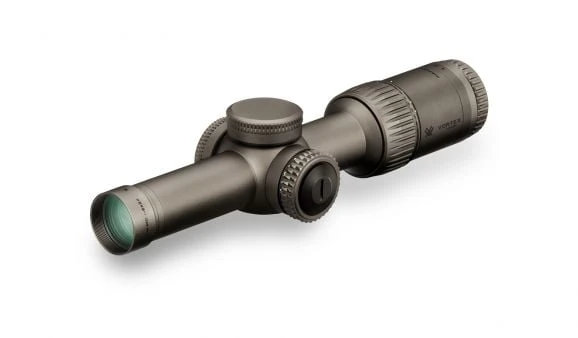

Vortex Razor HD GEN II-E 1-6X24 VMR-2 (MRAD) Reticle

At nearly 1/4 pound lighter than the original Razor HD Gen
II 1-6×24, the “E” (Enhanced) model allows for quicker transitions
between targets and less arm fatigue during long days on the range. Perfect for
the AR platform, the Gen II-E 1-6 is a top-tier optical solution for short to
medium range tactical applications. Optically, it delivers the highest level of
clarity, resolution, color accuracy, light transmission and edge-to-edge
sharpness. True 1x on the low end is complimented by an ultra-forgiving eyebox
with generous eye relief for a heads-up-display-like sight picture and a
daylight bright illuminated center dot in the reticle for extremely fast target
acquisition in close quarters. Ultra-sleek and built like a tank on a 30mm,
aircraft-grade aluminum tube, the Razor HD Gen II-E 1-6×24 features ultra-low
profile, capped windage and elevation turrets for streamlined performance.
Zero-resettable turrets offer 50 MOA (20 MRAD) of adjustment in a single turn,
ensuring ample travel.



UNLIMITED LIFETIME
WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED



Razor HD Gen II-E 1-6×24-VMR-2 (MRAD) Dimensions (in
inches)

Lengths
L1	L2	L3	L4	L5	L6
10.1	2.8	1.5	5.9	0.6	3.6



Heights
H1	H2
1.29	1.81

Dual use for Shooting Tactical / Hunting
US Patent 7,958,665

Included in the Box

• CR2032
  battery

• Lens
  cloth

Magnification 1-6x

Objective Lens Diameter 24 mm

Eye Relief 4 inches

Field of View 115.2-20.5 ft/100 yds

Tube Size 30 mm

Turret Style Low Capped

Adjustment Graduation .2 MRAD

Travel Per Rotation 20 MRAD

Max Elevation Adjustment 43 MRAD

Max Windage Adjustment 43 MRAD

Parallax Setting 100 yards

Length 10.1 inches

Weight 21.5 oz

Product Manual (PDF) Download

Reticle Manual (PDF) Download



OPTICAL FEATURES

APO System Index-matched lenses correct color across the
entire visual spectrum.

Optically Indexed Lenses Optimize image sharpness and
brightness from edge to edge.

HD Lens Elements Premium extra-low dispersion glass delivers
the ultimate in resolution and color fidelity, resulting in high-definition
images.

XR™ Plus Fully Multi-Coated Ultimate anti-reflective
coatings on all air-to-glass surfaces provide maximum light transmission for
peak clarity and the pinnacle of low-light performance.

Plasma Tech Cutting edge coating application process
provides unparalleled coating durability and performance

Second Focal Plane Reticle Scale of reticle maintains the
same ideally-sized appearance. Listed reticle subtensions used for estimating
range, holdover and wind drift correction are accurate at the highest
magnification.

Illuminated Center Dot Daylight bright illuminated center
dot provides a precise point-of-aim in all lighting conditions.

Locking Illumination Locks illumination at preferred
setting.



CONSTRUCTION FEATURES

Tube Size 30 mm diameter provides maximized internal adjustment
and strength.

Single-Piece Tube Maximizes alignment for improved accuracy
and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a
wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Finish Highly durable hard-coat anodization
provides a low-glare matte surface and helps camouflage the shooter’s position.

ArmorTek ® Ultra-hard, scratch-resistant coating protects
exterior lenses from scratches, oil and dirt.

Large Diameter Turrets Provide fast, accurate and easily
read elevation and windage adjustments. Caps provide external protection for
turret.



INTERNAL MECHANISM
DESIGN FEATURES

Friction Reduction System Heat-treated, hardened-steel pad
floats on the end of the turret screw and interfaces with a hardened steel ring
on the erector tube for steel-on-steel contact. Prevents galling or deformation
of the erector screw contact point for superior durability and

Turret Screws Provides low-friction, wear-resistant
performance: precision-machined from a silicon-brass alloy and treated with an
advanced dry-film lubricant. Turret screw threads are precision machined to
sub-2 micron tolerances (less than 78-millionths of an inch).

Erector Tube System Precision-machined from aircraft grade
aluminum with anti-galling properties for a lighter weight, strong, durable
tube. Stainless Steel offset coil spring erector biasing system withstands much
higher stresses than traditional flat erector springs and al



CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

Locking Side Illumination Easily accessible and lockable
illumination dial is located on the left side of turret housing. Features
eleven intensity levels of illumination with off positions between each
setting.



RETICLE



VMR-2 (MRAD)

The VMR-2 is a hashmarked ranging reticle with an
illuminated center dot that uses MRAD-based subtension lines for ranging,
holdover and windage corrections.

Subtension detail for Razor HD Gen II-E riflescope with VMR-2
MRAD reticle.
