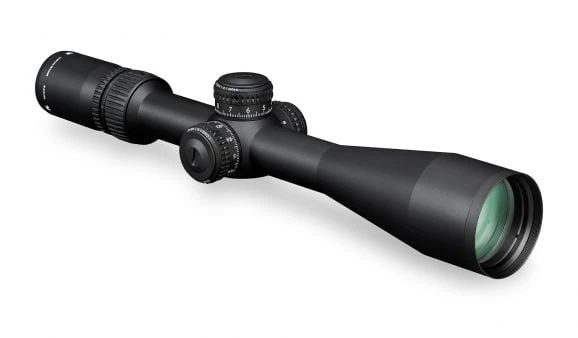

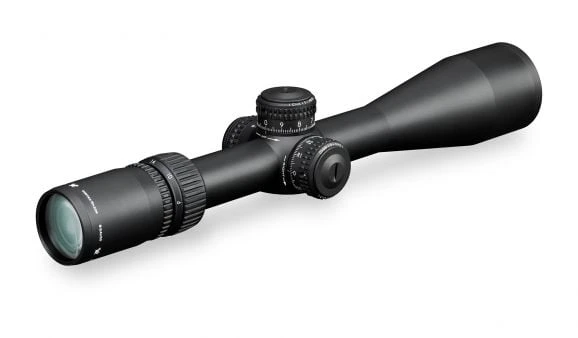

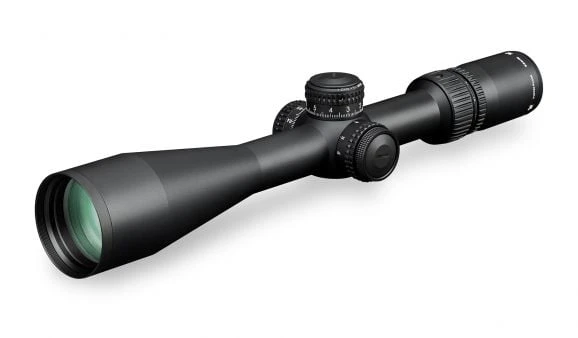

Vortex RAZOR® HD AMG® 6-24X50 EBR-7B (MOA) Reticle | 30 Mm Tube

With the highest end optical system in the Vortex line, the
Razor HD AMG is ready to handle any mission from long-range competition and the
most critical tactical applications, to open-landscape hunts – all with
ultimate precision.

Perhaps most notably, the Razor HD AMG is packed solid with
long-range features like locking turrets, integrated L-Tec zero stop and an
integrated locking illumination dial, powering the FFP reticle, all at an
incredibly low weight of just 28.8 ounces. Rather than pursuing the common 34mm
tube for a long-range capable scope, the Razor HD AMG has been specially
designed with its 30mm tube to aid in weight reduction. The 30mm tube offers a
sleeker profile atop any rifle without significant compromise in the way of
internal adjustment and field of view.

Razor HD AMG 6-24×50-EBR-7B FFP MOA Dimensions (in
inches)



Lengths
L1	L2	L3	L4	L5	L6
15.2	2.1	2.3	6.0	5.1	3.7



Heights
H1	H2
2.3	1.7

Dual use for Shooting Tactical / Hunting
US Patents 7,937,879 • 7,958,665 • 8,166,696



Included in the Box

• Defender
  Flip Cap E-10

• Defender
  Flip Cap O-50

• LTEC-Tool

• CR2032
  battery

• Lens
  cloth

• 3″
  sunshade



Magnification 6-24x

Objective Lens Diameter 50 mm

Eye Relief 3.6 inches

Field of View 20.4-5.1 ft/100 yds

Tube Size 30 mm

Turret Style L-Tec

Adjustment Graduation 1/4 MOA

Travel Per Rotation 25 MOA

Max Elevation Adjustment 71 MOA

Max Windage Adjustment 34 MOA

Parallax Setting 30 to Infinity

Length 15.2 inches

Weight 28.8 oz

Product Manual (PDF) Download

Reticle Manual (PDF) Download

OPTICAL FEATURES

ALO Alignment Proprietary, precision-laser process,
perfectly aligns every lens element to ensure the absolute best image possible.

APO System Index-matched lenses correct color across
the entire visual spectrum.

Optically Indexed Lenses Optimize image sharpness and
brightness from edge to edge.

HD Lens Elements Premium extra-low dispersion glass
delivers the ultimate in resolution and color fidelity, resulting in
high-definition images.

XR™ Plus Fully Multi-Coated Ultimate anti-reflective
coatings on all air-to-glass surfaces provide maximum light transmission for
peak clarity and the pinnacle of low-light performance.

Plasma Tech Cutting edge coating application process
provides unparalleled coating durability and performance

First Focal Plane Reticle Scale of reticle remains in
proportion to the zoomed image. Constant subtensions allow accurate holdover
and ranging at all magnifications.

Glass-Etched Reticle Allows for intricate reticle
design. Protected between two layers of glass for optimum durability and
reliability.

Illuminated Reticle Provides precise aiming under
low-light conditions

CONSTRUCTION FEATURES

Tube Size 30 mm diameter provides maximized internal
adjustment and strength.

Single-Piece Tube Maximizes alignment for improved
accuracy and optimum visual performance, as well as ensures strength and
waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block
of aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and
debris from penetrating the binocular for reliable performance in all
environments.

Fogproof Argon gas purging prevents internal fogging
over a wide range of temperatures.

Shockproof Rugged construction withstands recoil and
impact.

Hard Anodized Black Finish Highly durable Type III
hard-coat anodization provides a low-glare matte surface and helps camouflage
the shooter’s position.

ArmorTek ® Ultra-hard, scratch-resistant coating
protects exterior lenses from scratches, oil and dirt.

L-Tec™ Turrets Integrated locking mechanism prevents
accidental adjustments. Turrets provide fast, accurate, easily read elevation
and windage adjustments. Patent pending.

Locking Illumination Locks illumination at preferred
setting.

Side Focus Adjustment located on left side of turret
housing is easily accessible from shooting position. Provides optimal image
focus and parallax removal.

INTERNAL MECHANISM DESIGN FEATURES

L-Tec™ Zero Stop Prevents elevation turret from dialing
below sight in range using rugged steel components. Internal mechanisms stay
free of sand, dirt, dust, moisture and other foreign materials—even when
setting the zero-stop position.US Patent 8,166,696 B2

Maximized Turret Zero Adjustment Turret design allows
expanded adjustment range when L-Tec zero stop feature is disengaged for
zeroing purposes. This scope offers 27.5 MRAD total elevation adjustment and 19
MRAD total windage adjustment.

Micro Adjust Zero Setting Infinite zero setting
positions allow zero to be set between clicks for optimal accuracy.

Friction Reduction System Heat-treated, hardened-steel
pad floats on the end of the turret screw and interfaces with a hardened steel
ring on the erector tube for steel-on-steel contact. Prevents galling or
deformation of the erector screw contact point for superior durability and

Turret Screws Provides low-friction, wear-resistant
performance: precision-machined from a silicon-brass alloy and treated with an
advanced dry-film lubricant. Turret screw threads are precision machined to
sub-2 micron tolerances (less than 78-millionths of an inch).

Erector Tube System Precision-machined from aircraft
grade aluminum with anti-galling properties for a lighter weight, strong,
durable tube. Stainless Steel offset coil spring erector biasing system
withstands much higher stresses than traditional flat erector springs and al

CONVENIENCE FEATURES

Locking Diopter Eyepiece This feature allows the
shooter to set and lock the eyepiece setting once for their eye and forget it.

L-Tec™ Tool Included with your scope for precise
adjustments to the turret.

Locking Side Illumination Easily accessible and
lockable illumination dial is located on the left side of turret housing.
Features eleven intensity levels of illumination with off positions between
each setting.

RETICLE



EBR-7B (MOA)

The EBR-7B (Enhanced Battle Reticle) is a hashmarked ranging
reticle using mrad based subtension lines for ranging, holdover, and windage
corrections.

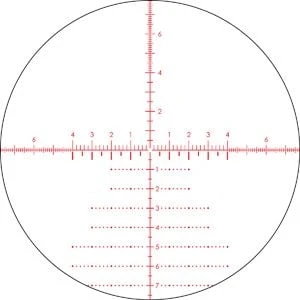

Reticle image shown at 24x magnification

Subtension detail for Razor HD AMG riflescope with EBR-7B MOA
reticle.
