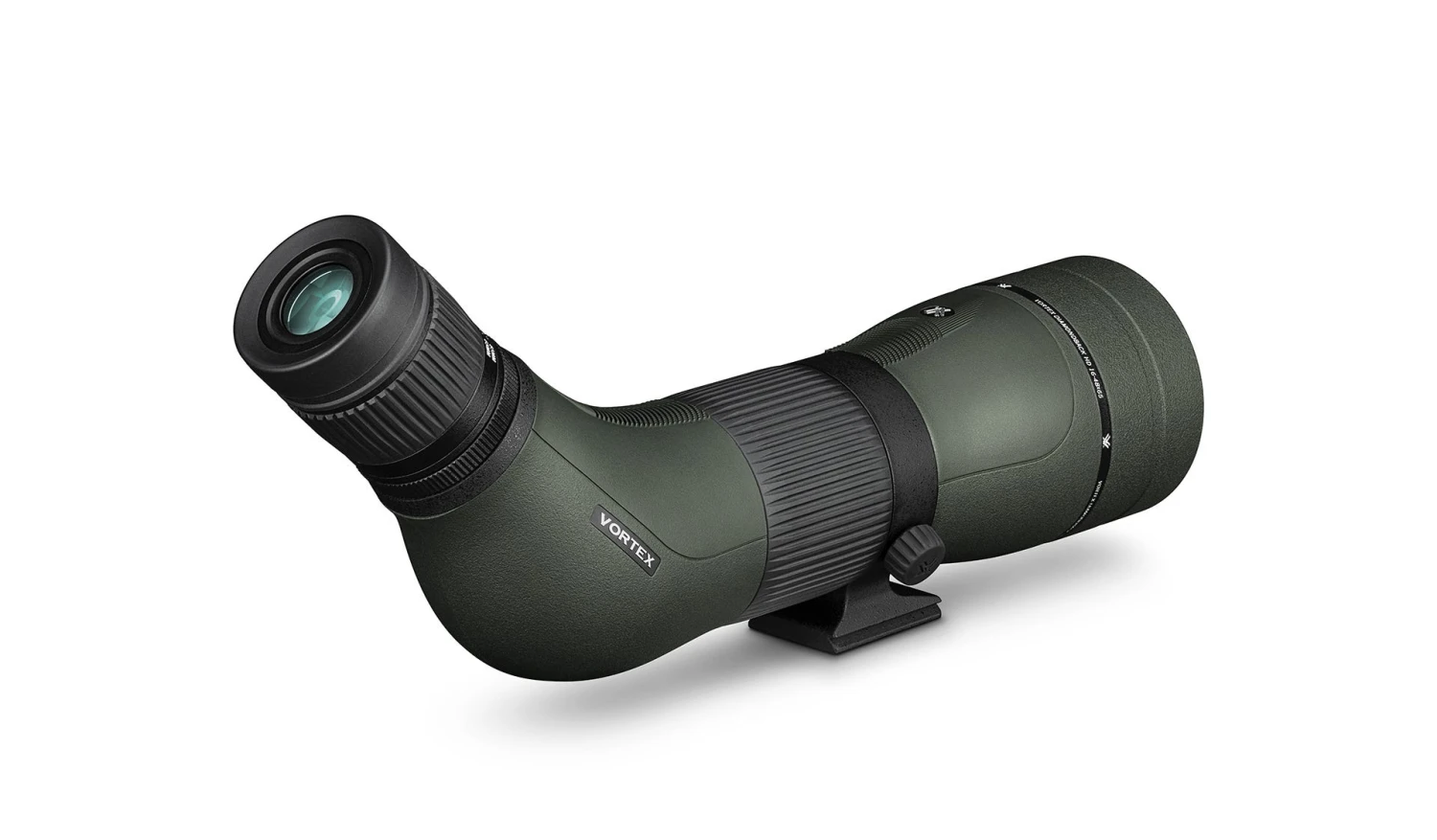

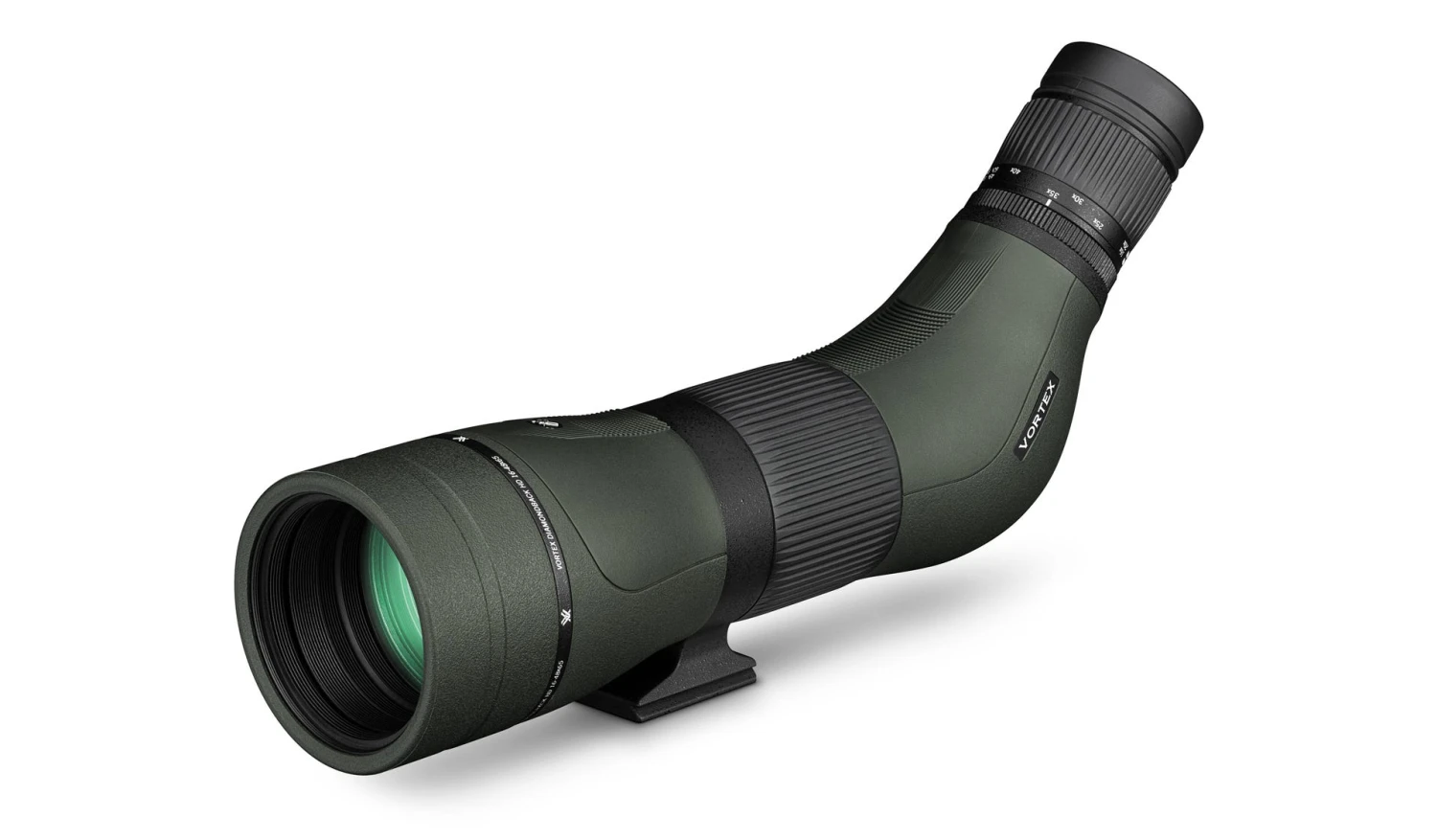

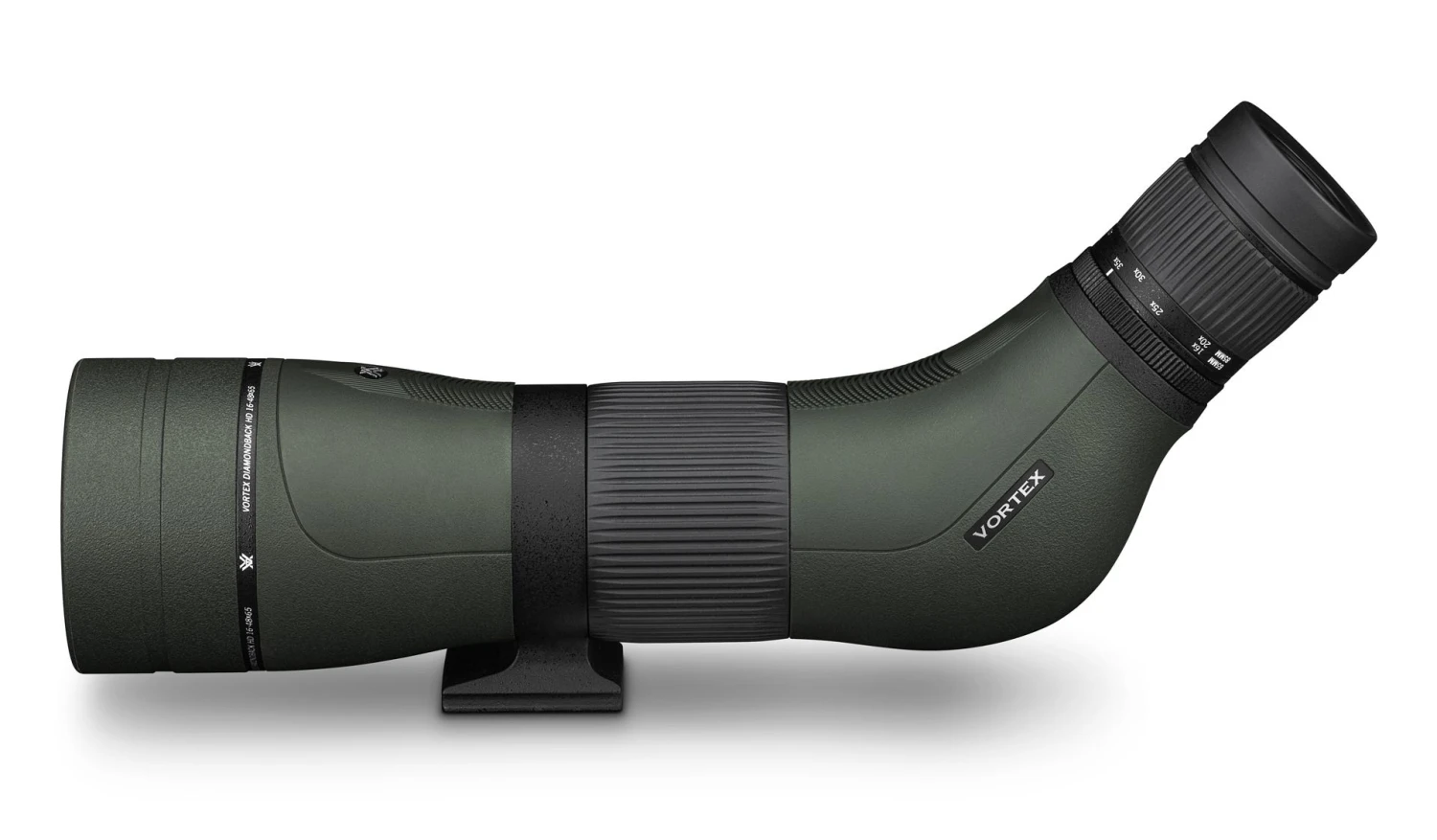

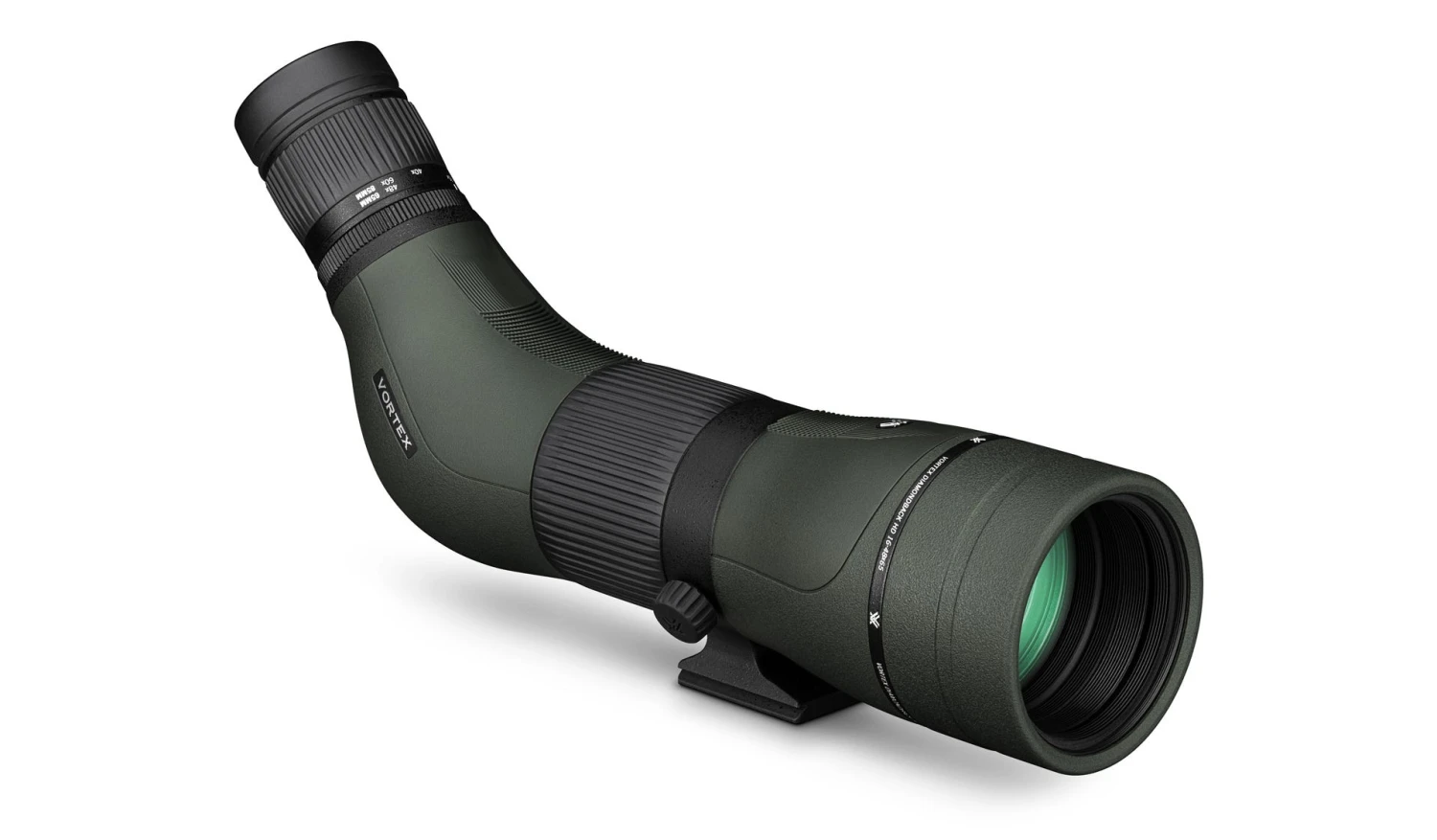

VORTEX OPTICS Diamondback HD Spotting Scope 16-48×65 Angled

Glassing out west demands an HD optic, but other systems can’t get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter needs, and they excel in lowlight—right when you need it most. We’ve also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel.

Included in the Box

• Neoprene cover

• Tethered objective lens cap

• Tethered ocular lens cap

• Lens cloth

Magnification 16-48x

Objective Lens Diameter 65 mm

Linear Field of View 138-72 ft/1000 yds

Angular Field of View 2.6-1.4 degrees

Close Focus 16.4 feet

Eye Relief 20.3-18.3 mm

Exit Pupil 4.0-1.35 mm

Length 13.75 inches

Weight 50.4 oz

Product Manual (PDF) Download

Parts Diagram (PDF) Download
