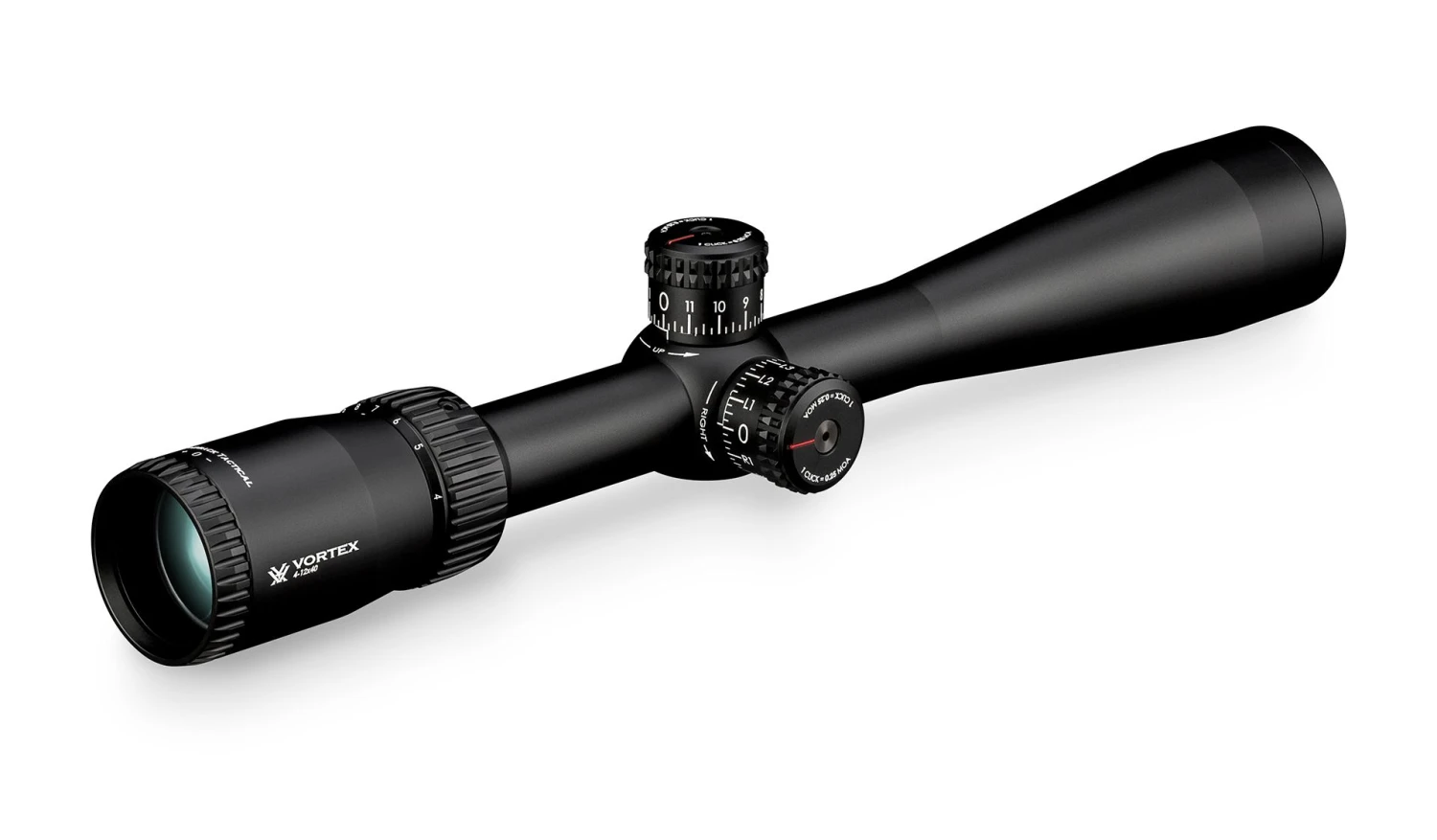

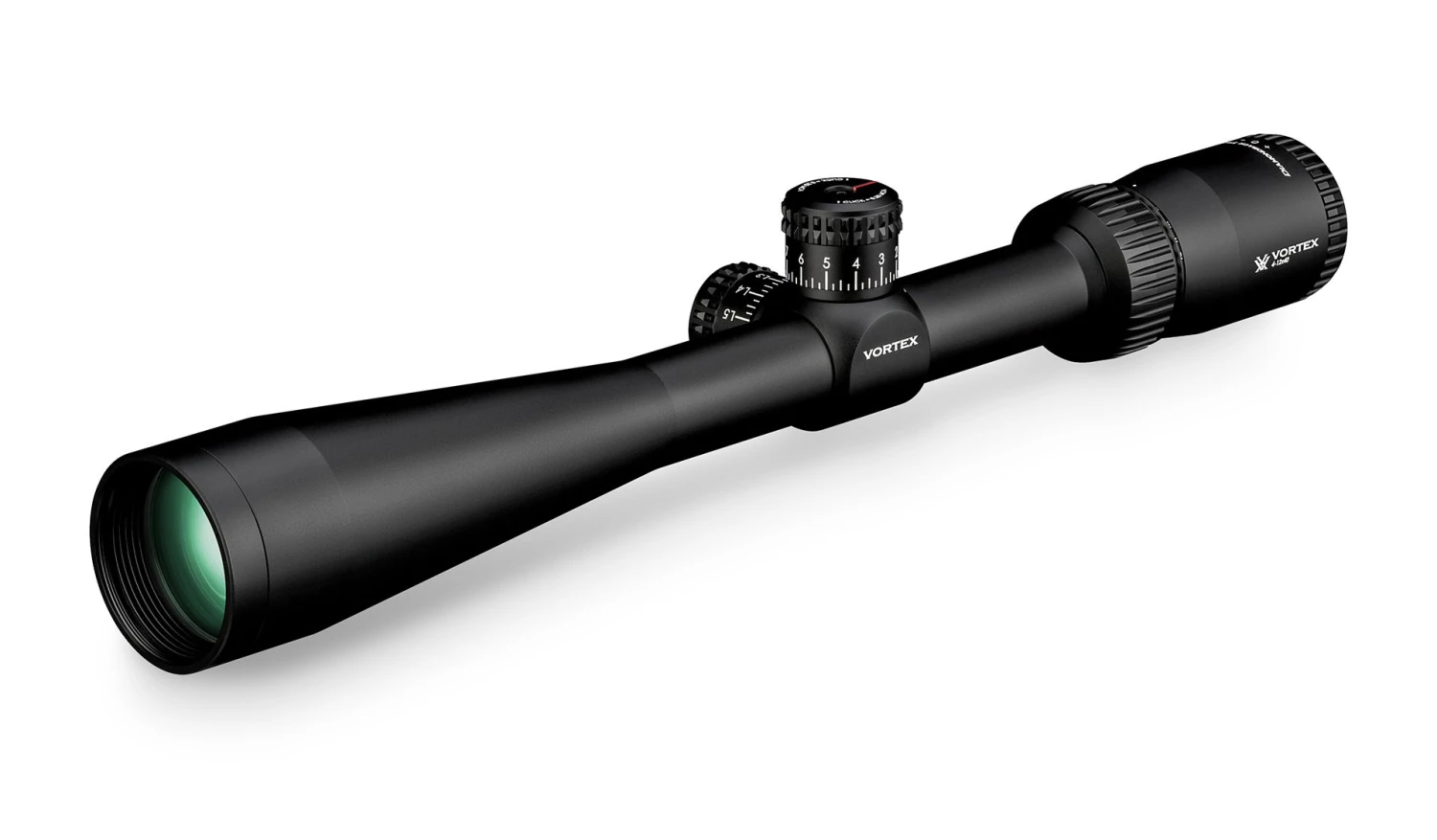

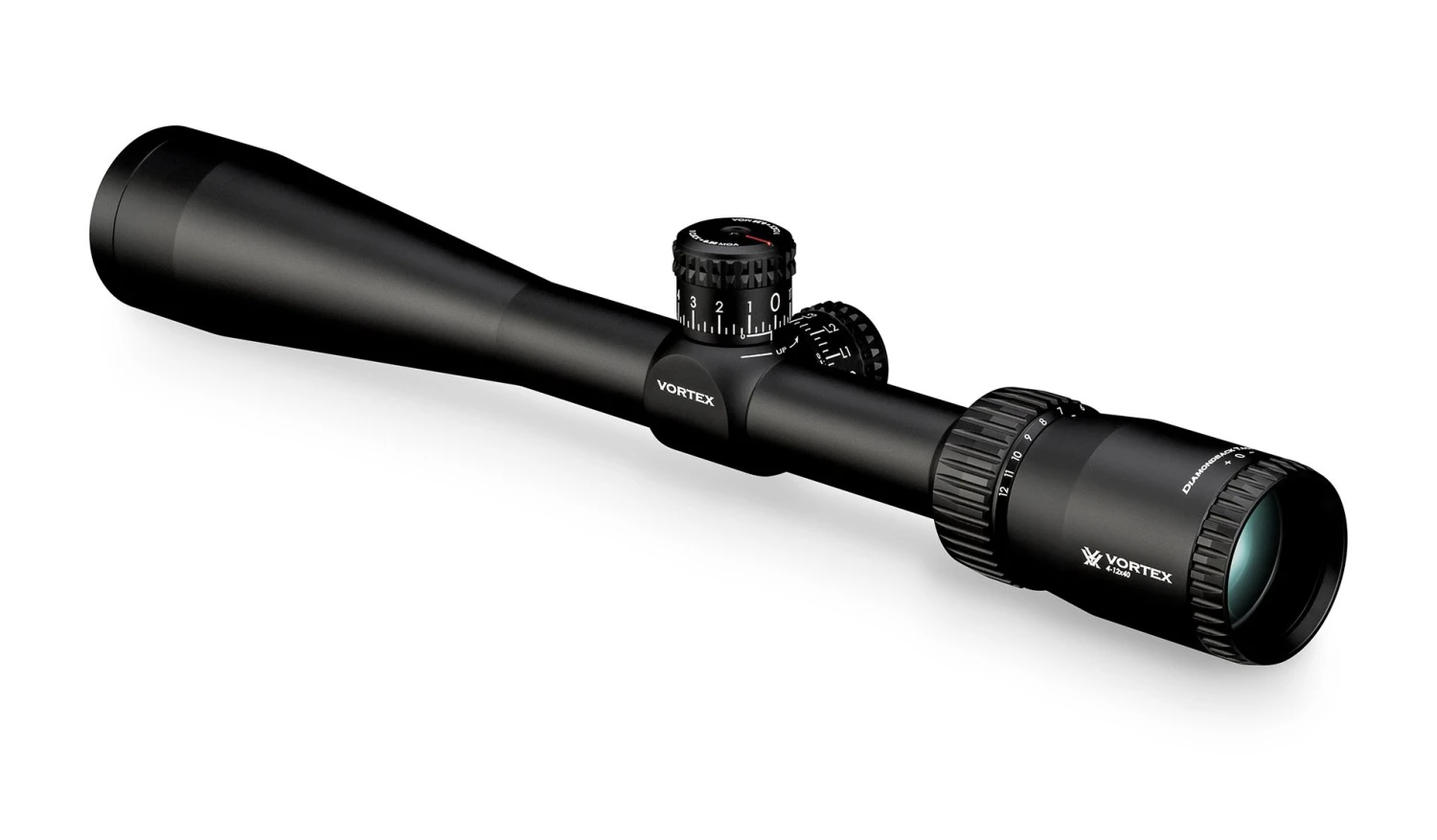

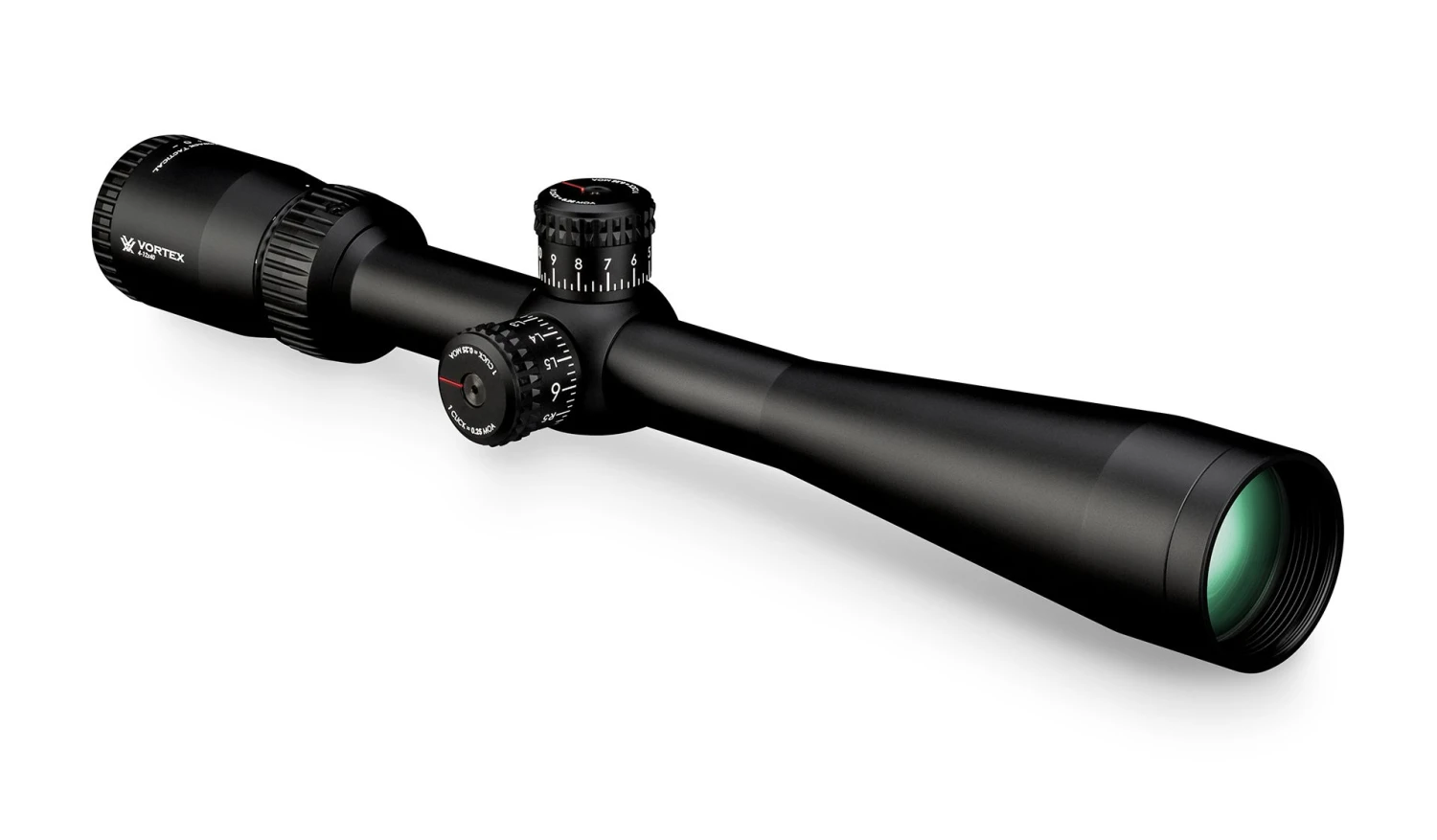

Vortex Diamondback Tactical 4-12×40

Exposed tactical turrets built for dialing elevation and
windage allow quick and precise bullet drop and wind drift compensation at
extended ranges. When we say precise – we mean it. These turrets track better
than any Bloodhound and reliably return to zero every time. A zero-reset
feature lets you re-index the zero reference marks on both turrets after sight
in, while fiber optic rotation indicators integrated into the turrets provide a
visual cue of your turret’s position.

Diamondback Tactical 4-12×40 Dimensions (in inches)



Lengths
L1	L2	L3	L4	L5	L6
14.2	1.9	2.1	5.3	5.3	3.6



Heights
H1	H2
1.86	1.58



Dual use for Shooting
Tactical / Hunting

Included in the Box

• Lens
  Covers

• Lens
  Cloth

• Tools

Magnification 4-12x

Objective Lens Diameter 40 mm

Eye Relief 3.9 inches

Field of View 23.6-7.9 ft/100 yds

Tube Size 1 inch

Turret Style Tactical

Adjustment Graduation 1/4 MOA

Travel Per Rotation 12 MOA

Max Elevation Adjustment 70 MOA

Max Windage Adjustment 70 MOA

Parallax Setting 100 yards

Length 14.2 inches

Weight 16.2 oz

Product Manual (PDF) Download

Reticle Manual (PDF) Download

OPTICAL FEATURES

XD™ Lens Elements Extra-low dispersion (XD) glass increases
resolution and color fidelity, resulting in crisp, sharp images.

XR™ Fully Multi-Coated Proprietary coatings increase light
transmission with multiple anti-reflective coatings on all air-to-glass
surfaces.

Second Focal Plane Reticle Scale of reticle maintains the
same ideally-sized appearance. Listed reticle subtensions used for estimating
range, holdover and wind drift correction are accurate at the highest
magnification.

CONSTRUCTION FEATURES

Tube Size 1 inch diameter tube offers a versatile blend of
adjustment, size and weight for a wide variety of shooting applications.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Nitrogen gas purging prevents internal fogging over
a wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Finish Highly durable hard-coat anodization
provides a low-glare matte surface and helps camouflage the shooter’s position.

Precision-Glide Erector System This system ensures the
components in the zoom lens mechanism glide smoothly and cleanly through all
magnification ranges.

Exposed Tactical-Style Turrets Provide fast, accurate and
easily read elevation and windage adjustments.

CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

Radius Bar Fiber optic turret rotation indicator provides a
highly visible and tactile point of reference for turret rotations.

Magnification Rib The raised rib on the magnification ring
facilitates fast magnification changes in the heat of action.

RETICLE





VMR-1 RETICLE

Designed to maximize long distance shooting and ranging
abilities, the VMR-1 MOA reticle can be used to effectively determine ranges,
holdovers, windage corrections and moving target leads.

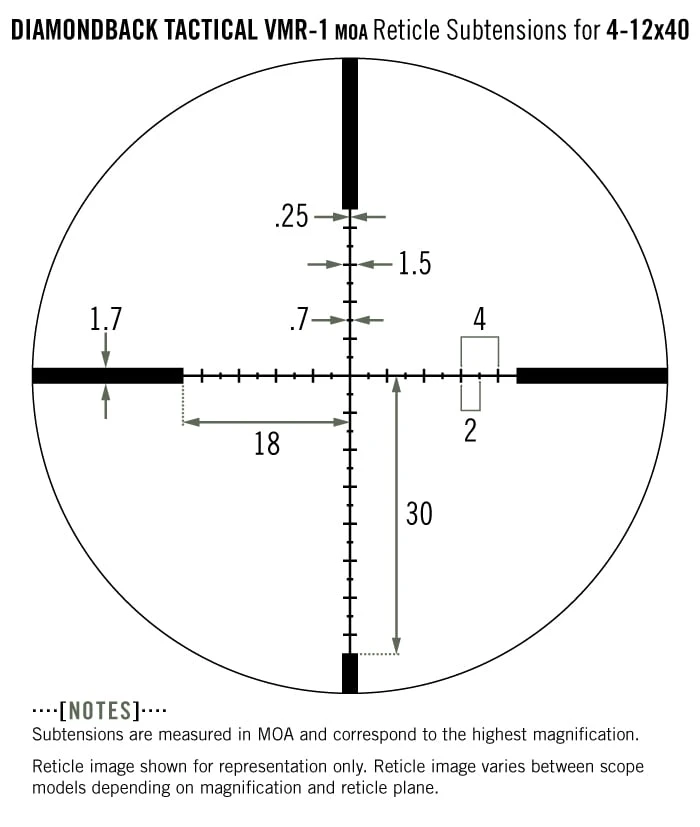

Subtension detail for the Diamondback Tactical 4-12×40
riflescope with VMR-1 reticle.





OUR VIP WARRANTY IS
ABOUT YOU, NOT US.

VIP stands for a Very Important Promise to you, our
customer. We will repair or replace your Vortex® product in the event it
becomes damaged or defective—at no charge to you. If we cannot repair your
product, we will replace it with a product in perfect working order of equal or
better physical condition.

You see, it doesn’t matter how it happened, whose fault it
was or where you purchased it. If you ever have a problem, no matter the cause,
we promise to take care of you. You can count on the VIP Warranty for all
Vortex Optics riflescopes, prism scopes, red dots, rangefinders, binoculars,
spotting scopes, tripods and monoculars.

UNLIMITED LIFETIME
WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED

The VIP Warranty does not cover loss, theft, deliberate
damage or cosmetic damage that does not hinder the performance of the product.
