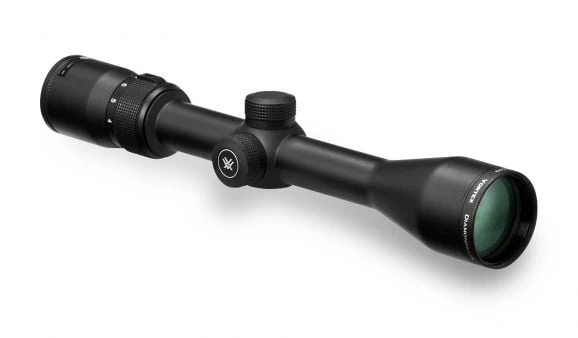

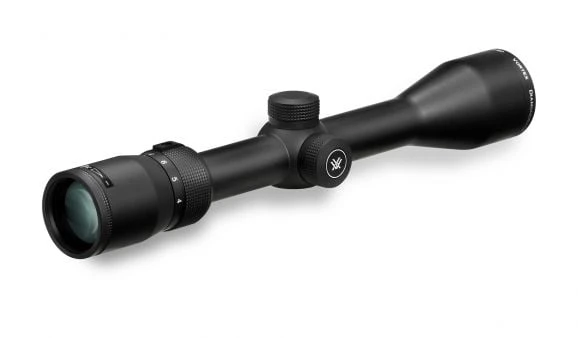

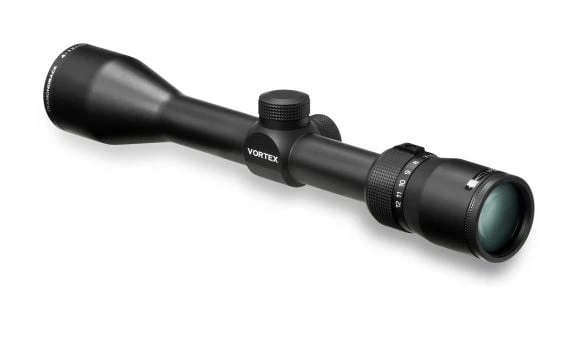

Vortex Diamondback 4-12×40-Dead-Hold BDC (MOA)

The Diamondback – loaded with features! First, the solid
one-piece aircraft-grade aluminum alloy construction makes the Diamondback
riflescope virtually indestructible and highly resistant to magnum recoil.
Argon purging puts waterproof and fogproof performance on the agenda, and
advanced fully multi-coated optics raise an eyebrow when crystal clear,
tack-sharp images appear in the crosshairs. Look for all this and more in a
riflescope you’d expect to cost quite a bit more-but doesn’t. We can live with
that.

Diamondback 4-12×40-Dead-Hold BDC (MOA) Dimensions (in
inches)



Lengths
L1	L2	L3	L4	L5	L6
12.0	2.4	2.0	5.6	3.0	3.1



Heights
H1	H2
1.89	1.69

Included in the Box

• Removable
  lens covers

• Lens
  cloth

Magnification 4-12x

Objective Lens Diameter 40 mm

Eye Relief 3.1 inches

Field of View 32.4-11.3 ft/100 yds

Tube Size 1 inch

Turret Style Capped

Adjustment Graduation 1/4 MOA

Travel Per Rotation 15 MOA

Max Elevation Adjustment 60 MOA

Max Windage Adjustment 60 MOA

Parallax Setting 100 yards

Length 12 inches

Weight 14.6 oz

Product Manual (PDF) Download

Reticle Manual (PDF) Download

OPTICAL FEATURES

Fully Multi-Coated Proprietary coatings increase light
transmission with multiple anti-reflective coatings on all air-to-glass
surfaces.

Second Focal Plane Reticle Scale of reticle maintains the
same ideally-sized appearance. Listed reticle subtensions used for estimating
range, holdover and wind drift correction are accurate at the highest
magnification.

CONSTRUCTION FEATURES

Tube Size 1 inch diameter tube offers a versatile blend of
adjustment, size and weight for a wide variety of shooting applications.

Single-Piece Tube Maximizes alignment for improved accuracy
and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a
wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Finish Highly durable hard-coat anodization
provides a low-glare matte surface and helps camouflage the shooter’s position.

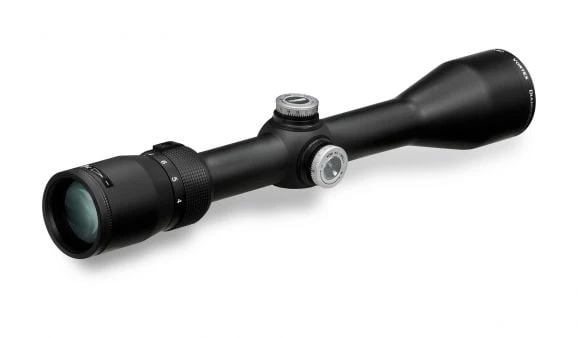

Capped Reset Turrets Allow quick re-indexing of the turret
(no tool needed) to zero after sighting in the riflescope. Caps provide
external protection for turret.

INTERNAL MECHANISM
DESIGN FEATURES

Precision-Glide Erector System This system ensures the
components in the zoom lens mechanism glide smoothly and cleanly through all
magnification ranges.

CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

RETICLE





Dead-Hold BDC (MOA)

Customized dot design helps eliminate guesswork on holdover
and windage corrections. Good for hunting/shooting at varying ranges where
estimating holdover is a concern.

Subtension detail for Diamondback 4-12X40 riflescope with
Dead-Hold BDC MOA reticle.
