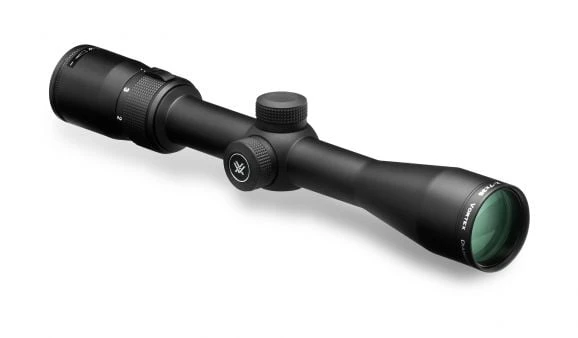

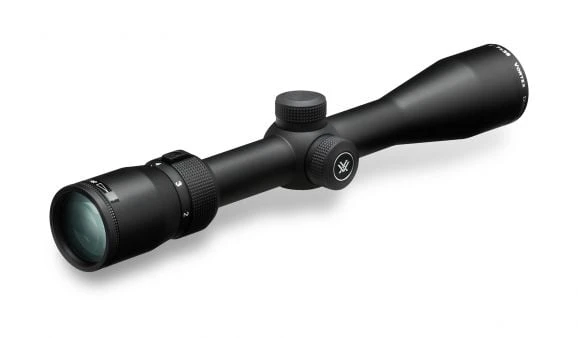

Vortex Diamondback 2-7×35 Rimfire V-Plex

The Diamondback – loaded with features! First, the solid
one-piece aircraft-grade aluminum alloy construction makes the Diamondback
riflescope virtually indestructible and highly resistant to magnum recoil.
Argon purging puts waterproof and fogproof performance on the agenda, and
advanced fully multi-coated optics raise an eyebrow when crystal clear,
tack-sharp images appear in the crosshairs. Look for all this and more in a
riflescope you’d expect to cost quite a bit more-but doesn’t. We can live with
that.

Diamondback 2-7×35 Rimfire Dimensions (in inches)



Lengths
L1	L2	L3	L4	L5	L6
11.6	1.7	2.1	5.1	3.2	3.1



Heights
H1	H2
1.72	1.69



Included in the Box

• Removable
  lens covers

• Lens
  cloth



Magnification 2-7x

Objective Lens Diameter 35 mm

Eye Relief 3.1 inches

Field of View 64.3-19.3 ft/100 yds

Tube Size 1 inch

Turret Style Capped

Adjustment Graduation 1/4 MOA

Travel Per Rotation 15 MOA

Max Elevation Adjustment 100 MOA

Max Windage Adjustment 100 MOA

Parallax Setting 50 yards

Length 11.6 inches

Weight 14.2 oz

Product Manual (PDF) Download

OPTICAL FEATURES

Fully Multi-Coated Proprietary coatings increase light
transmission with multiple anti-reflective coatings on all air-to-glass
surfaces.

Second Focal Plane Reticle Scale of reticle maintains the
same ideally-sized appearance. Listed reticle subtensions used for estimating
range, holdover and wind drift correction are accurate at the highest
magnification.

CONSTRUCTION FEATURES

Tube Size 1 inch diameter tube offers a versatile blend of
adjustment, size and weight for a wide variety of shooting applications.

Single-Piece Tube Maximizes alignment for improved accuracy
and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a
wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Finish Highly durable hard-coat anodization
provides a low-glare matte surface and helps camouflage the shooter’s position.

Precision-Glide Erector System This system ensures the
components in the zoom lens mechanism glide smoothly and cleanly through all
magnification ranges.

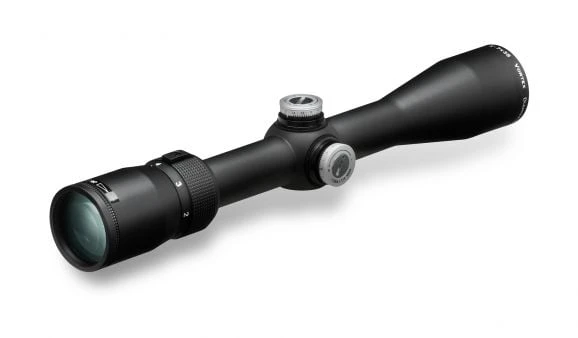

Capped Reset Turrets Allow quick re-indexing of the turret
(no tool needed) to zero after sighting in the riflescope. Caps provide
external protection for turret.

CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

RETICLE





V-PLEX RETICLE (MOA)

A popular all-purpose hunting reticle intended for a wide
variety of hunting applications.

Subtension detail for the Diamondback 2-7×35 Rimfire riflescope
with V-Plex MOA reticle.





OUR VIP WARRANTY IS
ABOUT YOU, NOT US.

VIP stands for a Very Important Promise to you, our
customer. We will repair or replace your Vortex® product in the event it
becomes damaged or defective—at no charge to you. If we cannot repair your
product, we will replace it with a product in perfect working order of equal or
better physical condition.

You see, it doesn’t matter how it happened, whose fault it
was or where you purchased it. If you ever have a problem, no matter the cause,
we promise to take care of you. You can count on the VIP Warranty for all
Vortex Optics riflescopes, prism scopes, red dots, rangefinders, binoculars,
spotting scopes, tripods and monoculars.

UNLIMITED LIFETIME
WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED

The VIP Warranty does not cover loss, theft, deliberate
damage or cosmetic damage that does not hinder the performance of the product.
